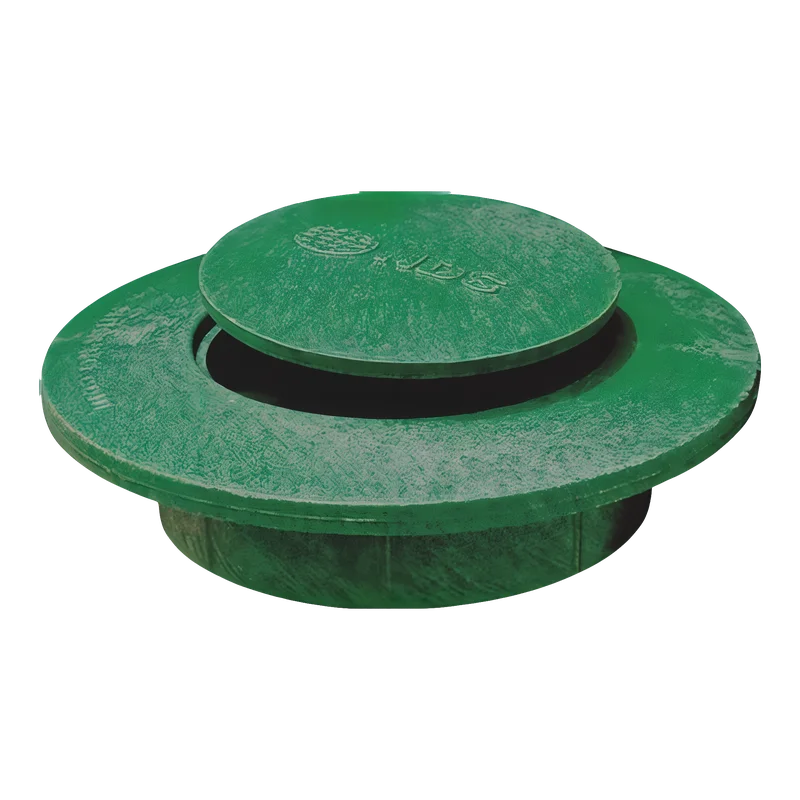

NDS Round Drainage Emitter

Description

• Weight: 3.0 lb
• Dimensions: 5.9 in. W x 2.9 in. D

Control runoff and protect foundations with the NDS round drainage emitter. Move roof and yard water from downspouts, catch basins, and French drains to a safe release point. Let the pop-up cap open under water pressure, then close to block debris and pests when the line clears.

Key Features

• Automatic pop-up discharge: Open on flow, shut when dry to reduce clogs.
• Low-profile round cover: Sit flush in turf or mulch for a clean finish.
• Durable HDPE body: Handle weather, foot traffic, and yard equipment.
• 3 in. and 4 in. compatibility: Tie into common sewer and drain pipe.
• Hydrostatic operation: Require minimal pressure to activate the cap.
• Compact and light: At 5.9 in. wide, 2.9 in. deep, and 3.0 lb for easy handling.

Applications

Redirect water away from slabs, crawl spaces, and erosion-prone spots. Daylight lines to curbside areas, swales, or landscaped beds where runoff can disperse safely. Use with downspout drainage, channel drains, and French or dry well systems to finish the run cleanly.

Specifications

• Material: High-density polypropylene (HDPE)
• Dimensions: 5.9 in. W x 2.9 in. D
• Weight: 3.0 lb
• Compatibility: Fits 3 in. and 4 in. sewer and drain pipe
• Operation: Pop-up cap opens by hydrostatic pressure
• Shape: Round, low-profile emitter cover

Install at finish grade and aim the outlet at a water-safe area. Set the cover level with the surrounding surface, compact backfill, and keep the discharge zone clear before storms.
