Description

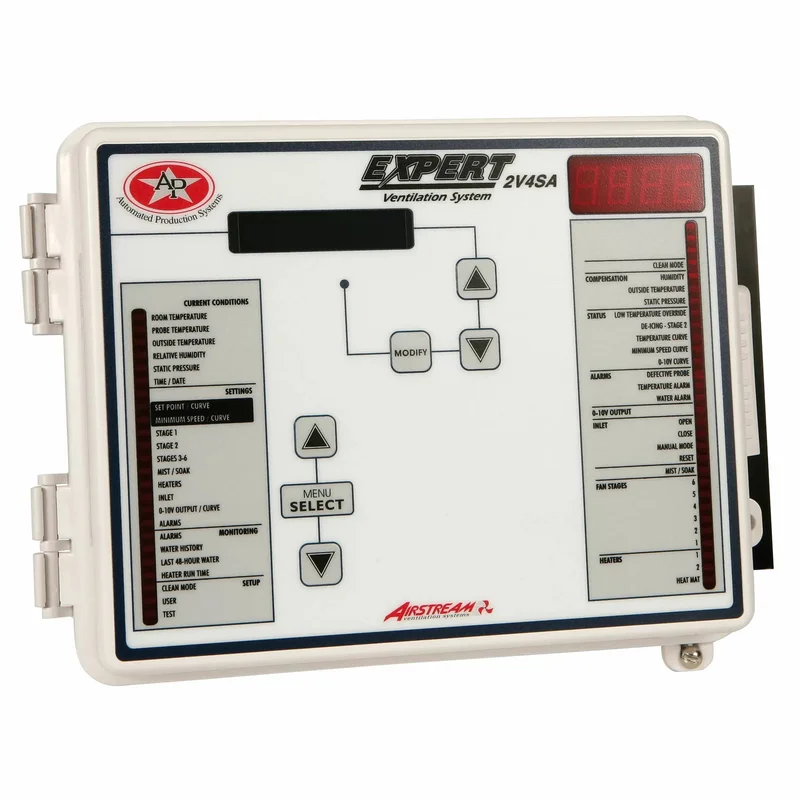

The “Mini” Series Expert line of controls offers many of the features of the Expert Series at a price comparable to the TC5 Series.
These units are ideal for farrowing and nursery rooms requiringprecise environmental control. The push-button style interface makes iteasy to navigate the settings and prevents broken knobs.All unitshavetwo variable speed stages and up to 4 on/off stages for fans,heatersor misters.
These units also have an internal air inlet output using potentiometer feedback.
Monitoring Capabilities:
- Alarms
- Water history (6 days)
- Heater run time (6 days)
If installed with an outside probe, the units will automaticallyadjust the alarm settings to prevent false alarms. The clean modesetting allows for minimum ventilation or lower heater settings to saveyou money. There are day and night set points.
“Mini” Series Expert Controls Available:
- #11370 — Expert 2V2SA, 2 variable, 2 on/off, 1 air inlet output, alarm output
- #11372 — Expert 2V3SA, 2 variable, 3 on/off, 1 air inlet output, alarm output
- #11374 — Expert 2V4SA, 2 variable, 4 on/off, 1 air inlet output, alarm output
Top and bottom boards available for all three controls.
Control Specifications for the 2V2SA:
- On/Off Relays: 2
- Actuator Outputs (Open & Close): 1
- Heat Stages: 2
- Fan Stages: 4
- Variable Stages: 2
- Inlet Stages: 1
- Mist Stages: 1
- Soaking Stages: 1
- 0-10 Volt Outputs: 1
- Alarm Output: 1
