LB ® Outdoor Mounting Kit – Guardian™ AW250/AD250

Description

(LBW #24097) Outdoor mounting of your LB White® Guardian™ AW250/AD250 Heater offers better performance and greater convenience. By mounting the heater outdoors, fresh, outside air is drawn into the heater for combustion. That means cleaner combustion and better inside air quality. This mounting kit comes with all necessary instructions, hardware, and templates needed to install your new heater outside, or relocate an existing indoor mounted Guardian™ Heater to the outside.

Reliability: Longer life. Heaters and gas piping are not exposed to the corrosive barn environment, minimizing component damage from dust and moisture accumulation. Enjoy lower maintenance costs.

Cost: Lower installation expenses and fewer replacement parts.

Convenience: No heater in the way inside the building. Since heater maintenance is performed outside, bio-security concerns are decreased.

Weight: 40 lbs

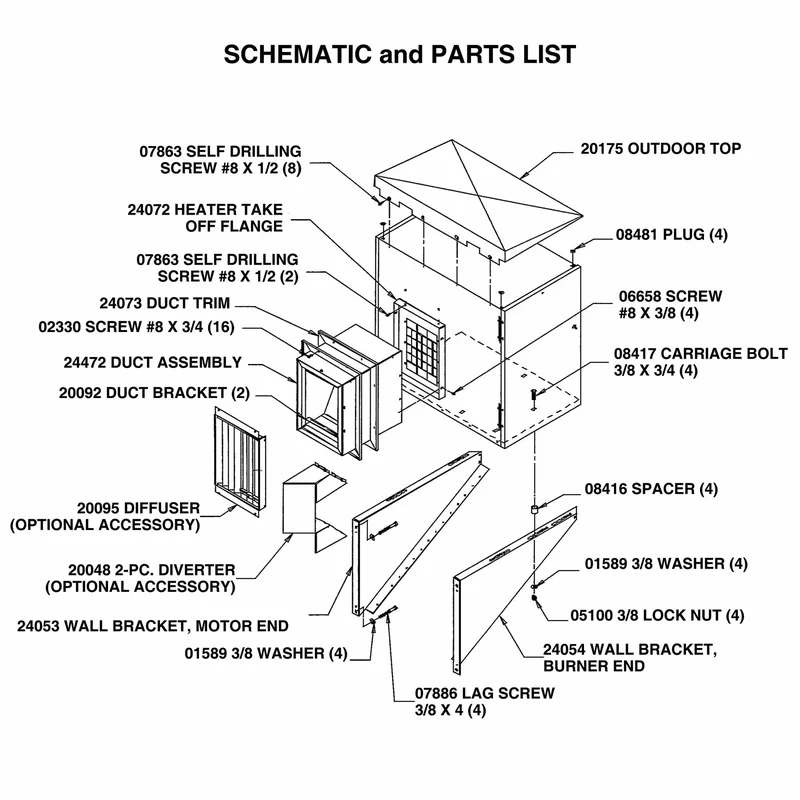

Kit Includes:

• [1] Outdoor Top
• [1] Wall Bracket, Burner End
• [1] Wall Bracket, Motor End
• [1] Duct Assembly
• [2] Duct Trims
• [2] Duct Brackets
• [1] Heater Take Off Flange
• [1] Hardware Bag
• [1] Template
• Instructions

Works With:

• #20188 — Guardian™ AW250 LP (Hot Surface Ignition)
• #20190 — Guardian™ AW250 NG (Hot Surface Ignition)
• #20199 — Guardian™ AD250 NG (Spark Ignition)
• #20200 — Guardian™ AD250 LP (Spark Ignition)
