Description

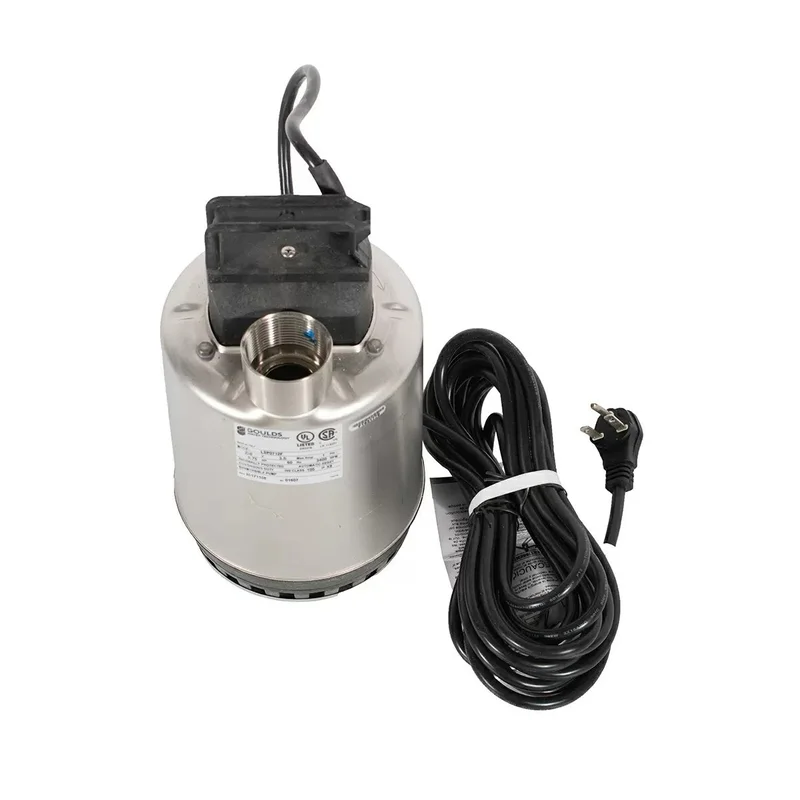

The LSP0712F Submersible Sump is lightweight, portable and easy to service. It works great to get water out of your basement, dewatering and water transfer applications. It features corrosion-resistant construction, stainless steel motor casing and fasteners and a glass-filled thermoplastic impeller and casing.
Features
- A double labyrinth lip seal system protects the motor. It consists of 3 lip seals and a V-ring in addition to an impeller counterblade system to keep solid particles away from the seal unit
- Corrosion-resistant construction
- Stainless steel motor casing and fasteners
- Glass-filled thermoplastic impeller and casing
- Upper and lower heavy duty ball bearing construction
- Motor is permanently lubricated for extended service life and is powered for continuous operation. All ratings are within the working limits of the motor
- Hard coated 400 series stainless steel shaft for improved corrosion resistance
- Float switch is adjustable for various liquid levels on automatic versions. Easily removed for direct pump operation or switch replacement
- Complete unit is lightweight, portable and easy to service
Specifications
- 10 minimum circuit breaker
- Float Switch Style: Plug/no switch
- 20′ cord length – 16/3 SJTW with 3-prong grounding plug
- 1 1/2″ discharge connection
- Min. On & Off Level: Manual
- Minimum Basin Diameter: 9″
- Discharge Size: 1 1/2″ NPT
- Capacities: to 57 GPM
- Maximum Head: 34′ TDH
- Maximum Solids: 3/8″ spherical
- Temperature: 104 F maximum liquid temperature
- Maximum Pump Submergence: 16′
- 15 lbs shipping weight
Motor
- 1 phase, 3,450 RPM
- 3/4 HP, 230 V, 3.5 amps
- Built-in thermal overload protection with automatic reset
- Permanent-split-capacitor type
- Class B insulation
- Stainless steel shaft
- Air filled design
